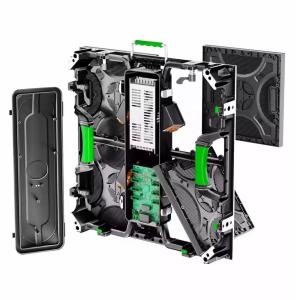

Led Video Wall Hanging/Standing Customized for
Novastar/linsn/colorlight
Product Description:
Our LED Stage Backdrop Screen is a perfect solution for creating
stunning visual displays for concerts, theater shows, conferences
and other events. Constructed with high-quality materials, the
screen has an IP65 rating, making it waterproof and dust-proof. It
also features a refresh rate of 3840Hz and a maximum power
consumption of 800W/sqm. The input voltage is adjustable between
AC110V/220V, and the control system is compatible with
Novastar/linsn/colorlight. With our LED Stage Backdrop Screen, you
can create spectacular visuals to captivate your audiences and make
your events memorable.
Features:
- Product Name: LED Stage Backdrop Screen
- Viewing Angle: 160°/160°
- Gray Scale: 16bit
- Pixel Pitch: 3.91mm/4.81mm
- Brightness: 1200-1500nits
- Input Voltage: AC110V/220V
- LED Stage Visual Screen
- LED Stage Display Screen
Technical Parameters:
| Parameter | Value |
|---|
| Size | Customized |
| Power Consumption | Max. 800W/sqm |
| Control System | Novastar/linsn/colorlight |
| Brightness | 1200-1500nits |
| Installation | Hanging/Standing |
| Lifespan | 100,000 Hours |
| Pixel Pitch | 3.91mm/4.81mm |
| Color Temperature | 6500K |
| Gray Scale | 16bit |
| Viewing Angle | 160°/160° |
Applications:
Shenzhen Kingvisionled presents its LED Stage Backdrop Screen,
Model P3.9, to make any stage performance stand out. Its input
voltage of AC110V/220V is safe and reliable, and its IP65 rating
makes it highly waterproof and dustproof. With a lifespan of
100,000 hours, it can be used for a long time. In addition, the
installation is flexible and convenient, with both hanging and
standing options. Furthermore, it comes with a 3-year warranty,
giving you the confidence to make your stage look great.
| Model | P2.6-IN | P2.9-IN | P3.9-IN | P3.9-OD | P4.8-OD |
| Pixel Pitch | 2.6 | 2.9 | 3.9 | 3.91 | 4.81 |
| Pixel Density(dot/m2) | 147,456 | 112896 | 65536 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Weight(±0.25kg) | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 |
| Cabinet Resolution(px*px) | 192*192 | 168*168 | 128*128 | 128*128/128*256 | 104*104/104*208 |
| Module Resolution(px*px) | 96*96 | 86*86 | 64*64 | 64*64 | 52*52 |
| Vertical Viewing Angle(Deg) | H160/V120 | H160/V120 | H160/V120 | H160/V120 | H160/V120 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 4500 | 4500 |
| Gray Scale(bit) | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/sqm) | 400 | 400 | 400 | 700 | 700 |
| Average Power Consumption(W/sqm) | 120 | 120 | 120 | 210 | 210 |
| Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 |
| Ingress Protection | IP43 | IP43 | IP43 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Outdoor | Outdoor |
| | | | | |
| | | | | |
Customization:
LED Stage Backdrop Screen
Brand Name: Shenzhen Kingvisionled
Model Number: P3.9
Place of Origin: Shenzhen
Viewing Angle: 160°/160°
Power Consumption: Max. 800W/sqm
Pixel Pitch: 3.91mm/4.81mm
Warranty: 3 Years
Gray Scale: 16bit
LED Stage Background Screen is perfect for Led stage rental led video wall. The high-quality LED displays of Kingvisionled provide high
resolution, wide viewing angle, low power consumption, and long
warranty. It is ideal for stage background, commercial advertising,
and entertainment.
Support and Services:
For technical support and service for LED Stage Backdrop Screen, we
offer the following:
- 24/7 customer service hotline
- Live chat support
- Email support
- In-depth troubleshooting and repair guides
- Regular product updates and alerts
- Access to a wide range of technical documentation
- On-site installation and setup assistance
Packing and Shipping:
Packaging and Shipping for LED Stage Backdrop Screen
- The product is packed in an extra strong wooden case, foam-filled
and shockproof for a safe delivery.
- The product is shipped via air/sea/courier.
- The estimated delivery time is 5-7 days.
FAQ:
- Q1: What is the product name?
- A1: The product is called LED Stage Backdrop Screen, manufactured
by Shenzhen Kingvisionled, Model Number: P3.9, from Shenzhen.
- Q2: What is the size of the LED Stage Backdrop Screen?
- A2: The size of the LED Stage Backdrop Screen is 3.9mm.
- Q3: What is the resolution of the LED Stage Backdrop Screen?
- A3: The resolution of the LED Stage Backdrop Screen is 1920*1080.
- Q4: What is the viewing angle of the LED Stage Backdrop Screen?
- A4: The viewing angle of the LED Stage Backdrop Screen is
140°/140°.
- Q5: How is the LED Stage Backdrop Screen powered?
- A5: The LED Stage Backdrop Screen is powered by AC100V-240V.
